Pressed ribbed steel panel in 1mm mild steel , overall 50.0cms (in direction of ribs) approx and around 68 cms approx wide.
8 ribs , please note the 3rd rib in both sides are slightly unevenly spaced and sit nearer rib 2 both sides, gives a slightly more aesthetically pleasing look (possibly).

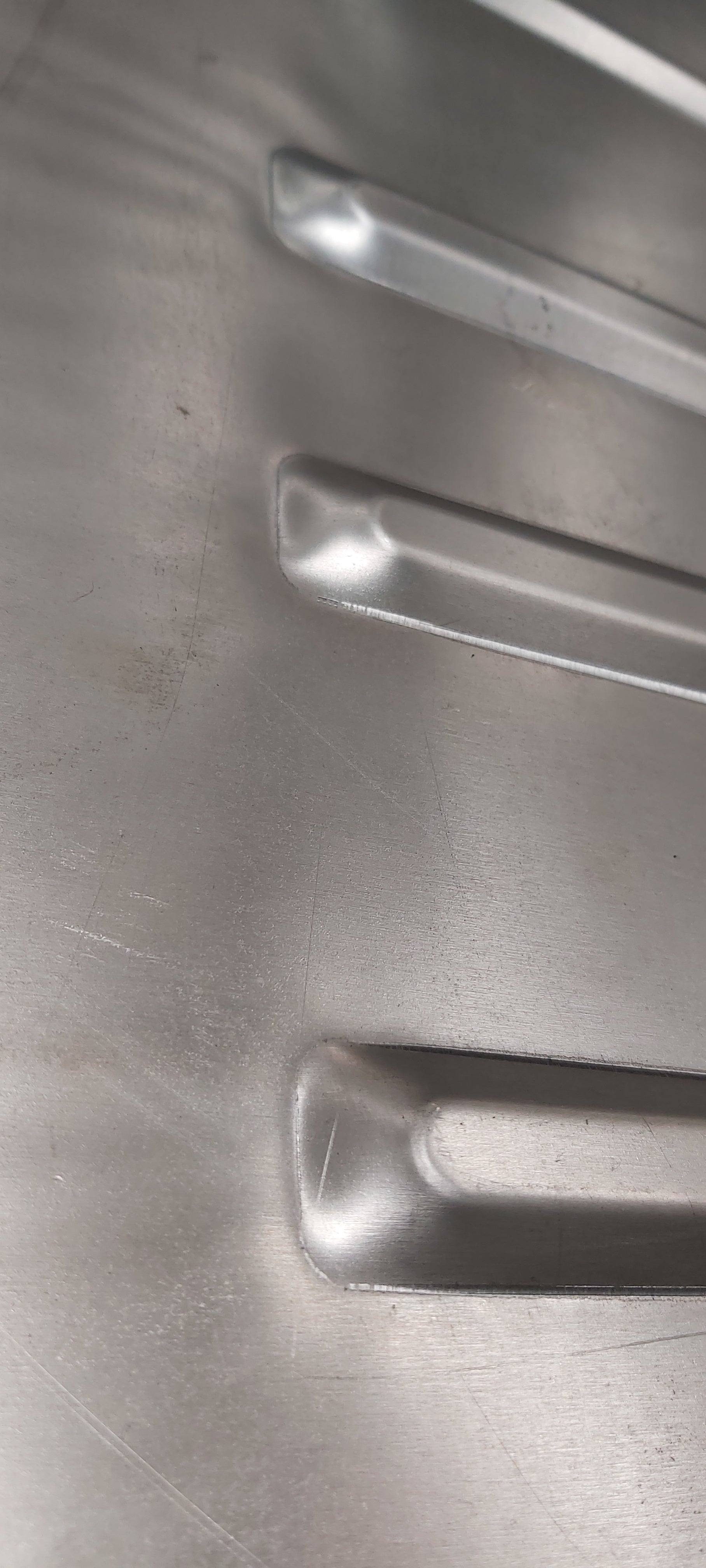

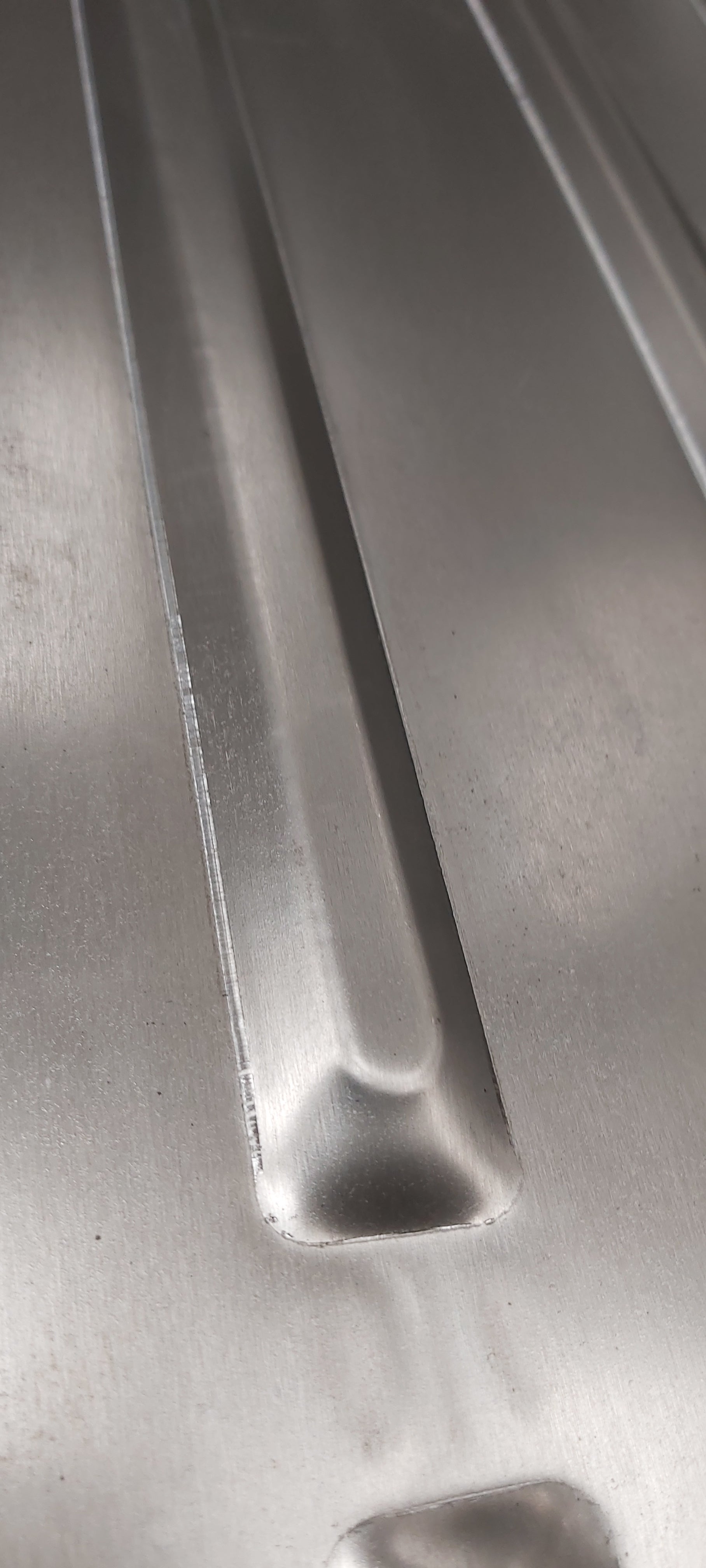

Ribs areALLapprox 42cms long and sit approx 6cms in from the rib tip to the edge of the steel one end and 2 / 2.5 cms from the other end. They are around 3cms to the edge of the steel down the sides. Each rib is around 2.5cms wide overall and approx 7mm high.

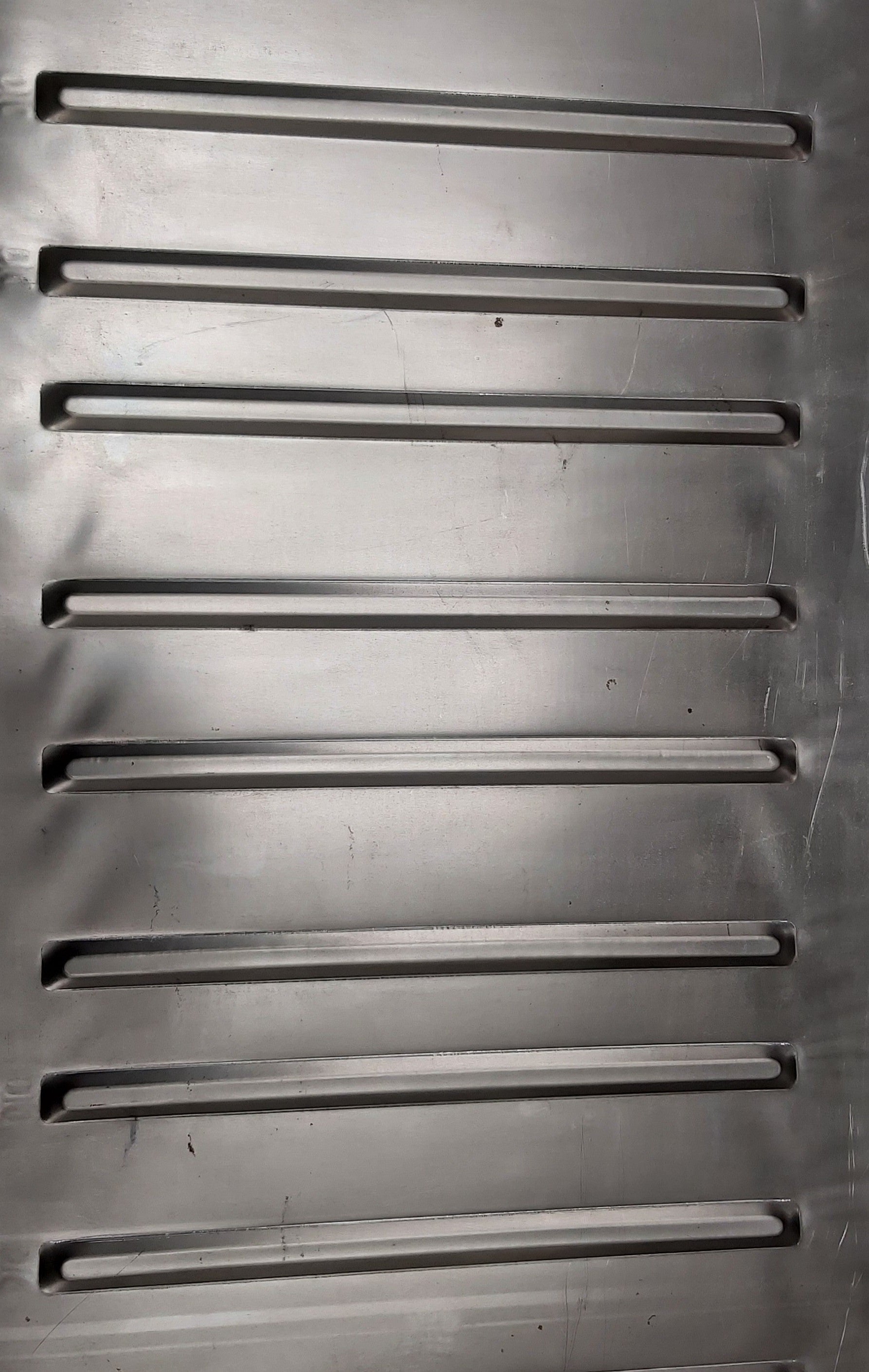

Please note the main picture of the floor is not great, the ribs are nicely formed but the light made it look a little odd and they look different lengths..they are not.
